Comparison and small benchmark of WarpMesaGL's and IBM's OpenGL
in different videomodes.
Test: AAPOLY.C
Videoadapter=Matrox G200 AGP
Processor = PII-350
RAM=128Mb
time units = 0.001 sec
frames per test - 360
WarpMesa version: alpha minus 1.6; original Mesa version 3.3
beta (21.03.2000)
Warning: All pictures are in PNG format ! (no information losses)
AAPOLY.C: rotation of filled 3D polygons with antialiased edges.
|
WarpMesa DIVE
|
WarpMesa PM GPI
|
IBM OpenGL
|
| VideoMode+Driver |
polySmooth=1 |
polySmooth=0 |
polySmooth=1 |
polySmooth=0 |
polySmooth=1 |
polySmooth=0 |
| Matrox 256colors |
6187(*)
dithering with DIVE |
1929(*)
dithering with DIVE |
7586(*) |
3297(*) |
1172(*) |
844(*) |
| SDD7 256colors |
5117(*) |
1853(*) |
5258(*) |
2032(*) |
1133(*) |
851(*) |
| SDD7 32K colors |
5078(*)
DIVE's Problem ? |
1828(*)
DIVE's Problem ? |
5750(*) |
2523(*) |
1368(*) |
946(*) |
| Matrox 64K colors |
5125(*) |
1907(*) |
6289(*) |
3078(*) |
1344(*) |
1024(*) |
| SDD7 64K colors |
5125(*) |
1875(*) |
5687(*) |
2477(*) |
1312 |
1024 |
| Matrox 1677216 colors |
5797,(5573)
Antialiased edges
pbmi->cBitCount=32 |
1251 (1273),
No Anti-aliasing
pbmi->cBitCount=32 |
8117 (6970) Antialiased edges
pbmi->cBitCount=24 |
3937 (2703)
No Anti-aliasing
pbmi->cBitCount=24 |
1711,
No comments |
1531
No comments |
| SDD7 1677216 colors3 |
4407(*) |
1149(*) |
5023(*) |
1813(*) |
1594 |
1406 |
(*) results for ver. a-1.6
and slightly changed AAPOLY.C
Appiarence of the progamme's window:
|
OpenGL "Gold" |
WarpMesa GPI |
WarpMesa DIVE |
polySmooth=1
glutInitWindowSize (200,200) ; |
 |
 |
captured in rotation
|
polySmooth=0
glutInitWindowSize (200,200) ; |
 |
 |
captured in rotation
|

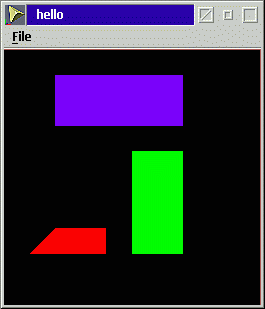

Hello.c : filled 2D poligones.
|
OpenGL "Gold" |
WarpMesa |
Hello.c - razI=100
Videoadapter=Matrox G200 AGP
Processor = PII-350
RAM=128Mb
time units = 0.001 sec |
glutInitWindowSize (256, 256);
(256,256) - frame window size |
glutInitWindowSize (256, 256);
(256,256) - client window size
|
Table was made for WarpMesaGL apha minus 1.8
|
|
WarpGL GPI |
WarpGL Dive |
OpenGL Gold |
| 64K colors 256*256 |
Single buffer |
2570-2618(**) |
N/A yet (****) |
773-797 |
| Double buffer |
1531-1570 |
1507-1609 |
813-820 |
| 64K colors1024*(768-22) |
Single buffer |
|
N/A yet (****) |
2070-2273 |
| Double buffer |
8695 |
8024 |
4100-4539 |
64K colors 256*256
SDD7 |
Single buffer |
|
|
|
| Double buffer |
836(*) |
1836-1938 |
172-227 |
64K colors1024*(768-22)
SDD7 |
Single buffer |
|
|
|
| Double buffer |
9000(*) |
18539 |
851-914 |
1677216 colors
256*256 |
Single buffer |
3334-3351(**) |
N/A yet (****) |
1039-1102(*) |
| Double buffer |
1680-1812 |
554 |
710- 860 (*)
555-679 (***) |
1677216 colors
1024*(768-22) |
Single buffer |
20344(**) |
N/A yet (****) |
6336 - 7633 (*) |
| Double buffer |
11930-12008 |
5937 |
3871-4578(*)
1743-2289, (***) |
|
|
|
|
|
|
|
|
|
|
(*) SET OGL_BIT_COUNT=32
(**) WarpGL single buffer works via GpiSetPel, so it is
so slow
(***) very fast, but doesn't work (Without SET OGL_BIT_COUNT=32)
(****) works in GPI mode
(*) results for ver. a-1.6
