Power Gas Lasers and Laser Technological Comlexes for Industry

Industrial CO2 lasers TL-1.5, TL-2.5, TL-4


  • High quality and long-term stability of radiation.
  • Full standartisation and unification of both Assemblies and Components
  • Enhanced operation reliability
  • Guaranteed service within a year
  • reasonable prices
  • Precision cutting of metallic (thickness up to 10mm) and nonmetallic (thickness up to 50mm) material
  • Welding
  • Heat hardening and facing of parts

Performance



TL - 1.5

TL - 2.5

TL - 4
Beam wavelegth, mkm 10.6 10.6 10.6
Maximum beam power, kW 1.5 3.0 4.5
Rated beam power under
long-term regime, kW 		1.3 2.5 4
Beam power instability, % +-2 +-2 +-2
Beam power control limits, kW 0.1...1.5 0.25...3.0 0.4...4
Beam aperture, mm 20 up to 40 up to 40
Beam divergence, mrad 1.4 up to 3 up to 3
Gas mixture composition CO2:(N2+O2):He 1:8.8:15.3 1:8.8:15.3 1:11.7:20.7
Gas consumption CO2:(N2+O2):He m3/h 0.003:0.022:0.03 0.003:0.022:0.03 0.002:0.026:0.05
Cooling water consumption, m3/h 2.2 2.2 3.5
Required electric power, kW up to 35 up to 40 up to 58
Dimensions, m 2.20å1.21å2.20 2.20å1.21å2.20 2.43å1.21å2.20
Weight, kg 1600 1650 1900

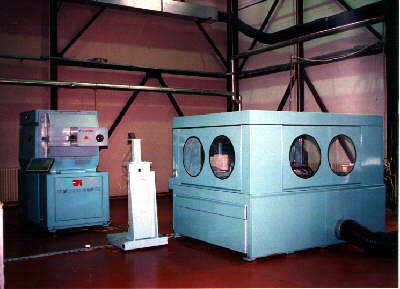

Technological Comlex: Power CO2 laser TL-1.5 and laser cutting table


Power TL-5M CO2 laser


Metal cutting

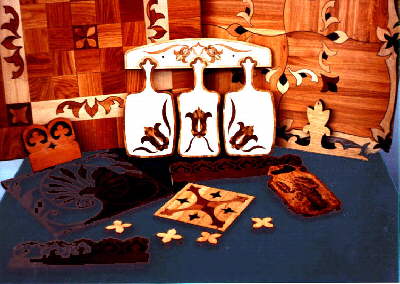

Wood Laser Parquet and other toys
