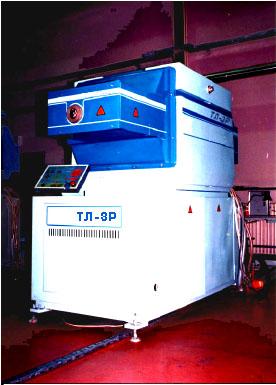

for use as generator of high-power coherent IR beam when employed in automated laser technological systems. It presents an electric-discharge CO2 laser with fast transverse flowing of working mixture in the gas loop
APPLICATIONS
cutting of metallic and non-metallic materials (glass, ceramics, etc.); hole punching
FEATURES
increased electro-optical efficiency cooling water reduced consumption pulse-periodical and continuous-wave generation modes
TECHNICAL DATA
Beam wavelength, mm 10.6 Beam maximum power, kW 4 Beam rated power in long-term mode, kW 3 Pulse repetition rate, kHz 0.2...5 Modulation depth, % 0...100 Beam aperture, mm 40 Beam divergence, mrad 2 Gas mixture composition CO2:N2+O2:He 1:7.5:11.5 Gas consumption, l/h 60 Cooling water consumption, m3/h 1.8 Required electric power, kW 40 Dimensions, m 2.29x1.21x2.20 Weight, kg 1700
